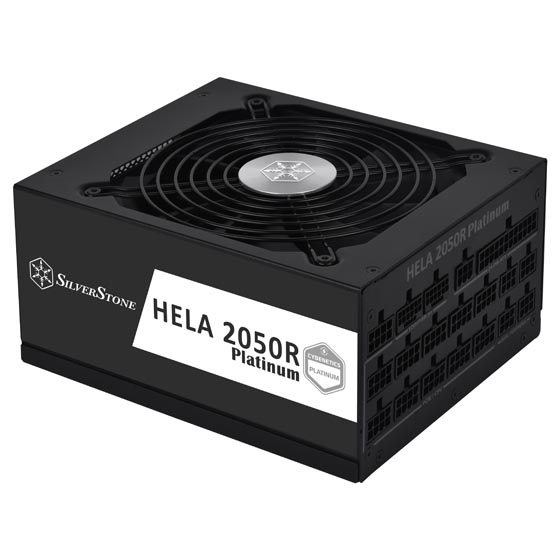

SilverStone 2050R 2050W (SST-HA2050R-PM) “HELA 2050R Platinum Cybenetics Platinum 2050W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply Supports 12VHPWR PCIe connector with ATX 3.0 and PCIe Gen 5 standard High efficiency with Cybenetics Platinum certification Built-in MCU semi-fanless mode to achieve optimized cooling performance 2050W continuous power output rated for 24/7 operation Fully modular design with SilverStone’s 3rd generation modular interface 2 x native 12VHPWR connector on modular interface with 3 x 12VHPWR cable included Silent running 135mm dual-ball bearing fan with advanced semi-fanless operation” Specifications Product No. SST-HA2050R-PM Model (safety certification) SST-AX2050MCPT-C Color Black (lead-free paint) Max. DC Output 2050W Power density 882W/L Load Range Output 3.3V Max. (Amps) 25A Min. (Amps) 0A Range (%) ±3% Line Reg. (%) ±1% Ripple (mVp-p) 30mV Combined 3.3V & 5V 120W Combined 12V 2040W Input Voltage 2050W: 200~240 Vrms, 1650W: 103~264 Vrms, 1350W: 90~264 Vrms Input Frequency Range 47Hz ~ 63Hz PFC Active PFC (PF > 0.95 at full load) Efficiency 89% ~ 91% overall efficiency MTBF 100,000 hours Operating temperature 0°C ~ 50°C Protection Over Current Protection, Over Power Protection, Over Voltage Protection, Short Circuit Protection, Over Temperature Protection Connectors 1 x 24 / 20-Pin motherboard connector, 2 x 8 / 4-Pin EPS / ATX 12V connector, 14 x 8 / 6-Pin PCIe connectors, 3 x 12 4-Pin 12VHPWR connector, 12 x SATA connector, 3 x 4-Pin Peripheral connector, 1 x 4-Pin Floppy adapter connector Cooling System 135mm dual-ball bearing fan Noise Level 0 dBA minimum Certification Cybenetics Platinum Form factor ATX (PS2) Dimension 150mm (W) x 86mm (H) x 180mm (D), 5.91″ (W) x 3.39″ (H) x 7.09″ (D) Weight 4.34 kg
